Chemical industry
Type of construction
CM+ series standardized pump with dimensions to EN 22858/ISO 2858/ISO 5199 or CM-B closed-coupled pump with casing dimensions to EN 22858/ISO 2858
Performance data
| CAPACITIES [Q] TO: | up to 200 m3/h |
| DIFFERENTIAL HEADS [H] TO: | up to 90 m |
| OPERATING TEMPERATURE: | up to 180 °C |
| SOLID CONTENT: | up to 5 % |
| PARTICLE SIZE: | up to 5 mm |
Features
| MAIN MATERIALS | PFA PP |
| IMPELLER | Closed Semi-open Vortex impeller (depending on pump size) |
| SHAFT SEAL | Sealless design through magnetic coupling |
| PLAIN BEARING | SSiC |
| OPTIONS | External mechanical seal flushing system Fluid temperature sensor in spacer can Secondary seals Spacer can contact protection Design with solids deflector Further safety options on request |
| EXPLOSION PROTECTION (ATEX) | Meets the requirements of Directive 2014/34/EU |
Downloads & media
THE PUMP WITH THE PLUS - THE MUNSCH CM+
THE SAFETY PLUS
Whether in operation, during an operating upset or in shut-down condition – we have built the CM+ with a solution concept that lets you sleep peacefully.
THE RELIABILITY PLUS
Reliability means: The pump lasts and lasts and lasts. Not only does the CM+ have a sound design concept, but it has also been subjected to thorough long-term testing. We make sure to keep our promises.
THE EFFICIENCY PLUS
We have never given up on getting better and invested in the latest technology. You will benefit from exceptional energy efficiency, a perfect suction behaviour and lowest NPSH requirements.
THE AVAILABILITY PLUS
Short delivery times and high spare parts availability are the hallmarks of MUNSCH. Solution-oriented and working closely together with you, we will be happy to help, also when time is of the essence. Give us a try!
THE HANDLING PLUS
Our MagPull and Quickfit easy-maintenance systems facilitate and accelerate pump maintenance, without having to remove the pump from your system.
THE APPLICATIONS PLUS
An expanded spectrum of pump sizes and capacities allows us to always find the right pump for your needs.
MUNSCH is the sole pump-manufacturer in the market to have in-house access to a tailor-made high-temperature test bench. This has put us in a position to consistently further develop our pumps and to make sure that we always live up to our promises!
THE QUALITY PLUS
Our owner-managed company has been manufacturing plastic-lined pumps in Germany's Westerwald region for more than 50 years with the focus on top quality.
THE SUSTAINABILITY PLUS
Sustainable, socially and ethically sound practices are just as important to MUNSCH as the operating reliability of its pumps, innovative products and maximum possible efficiency. As an EcoVadis member, we are aware of our responsibility and take pride in our ranking.
High-quality construction materials
MUNSCH CM+ series chemical pumps are available in the following main materials: PP and PFA.
PP | 0 to 90 °C | The ecological option with good resistance to many inorganic acids. |
| PFA | -20 to 180°C | Virtually universally applicable fluoropolymer with a broad temperature and application range. |
Hermetic Containment by Spacer Can
In the chemical standard pump CM+, a vacuum-tight, metal-free, double-walled spacer can separates the pumped product from the environment. The special MUNSCH construction offers unbeatable advantages for critical applications:
• Avoidance of eddy currents prevents the process liquid from heating up
• No magnetic power loss – high efficiency guaranteed
• The spacer can is protected against mechanical contact with the drive rotor
• The optional electronic monitoring provides additional protection for the pump and process
• Almost universally chemical and vacuum resistant
Wear-protected plain bearing
The standard construction material is silicon carbide, known for its unsurpassed resistance against corrosion and wear. Dry run-protected plain bearings are available as an option. An additional surface treatment makes these bearings tolerant to temporary dry running.
HANDLING
Our MagPull and Quickfit easy-maintenance systems facilitate and accelerate pump maintenance, without having to remove the pump from your system.

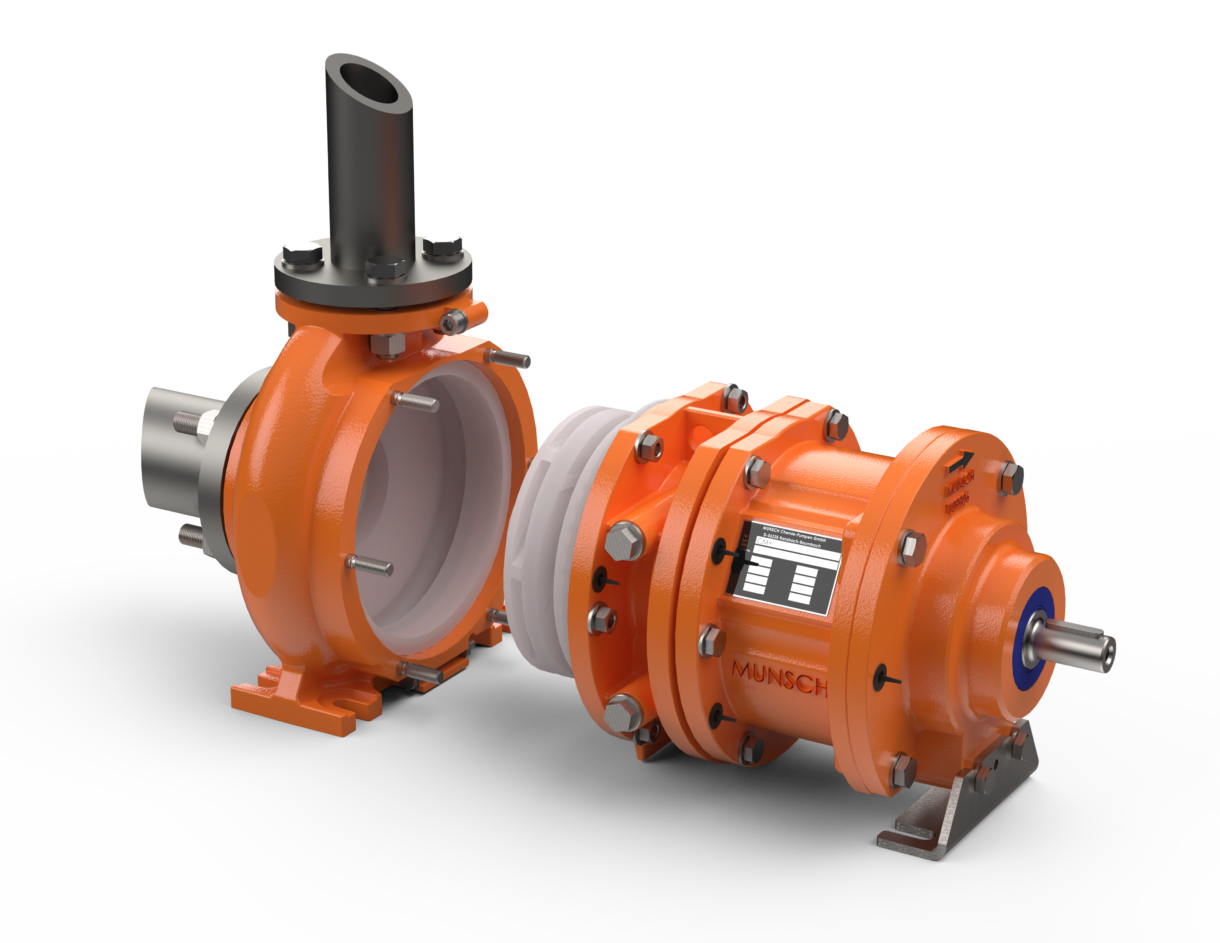

QuickFit
The pump casing can be removed from the remaining pump unit within a few minutes while remaining connected to the discharge- and suction-side piping.
The QUICKFIT unit can be replaced with the casing staying in line, which allows for the pump to be restarted with a minimum of downtime.

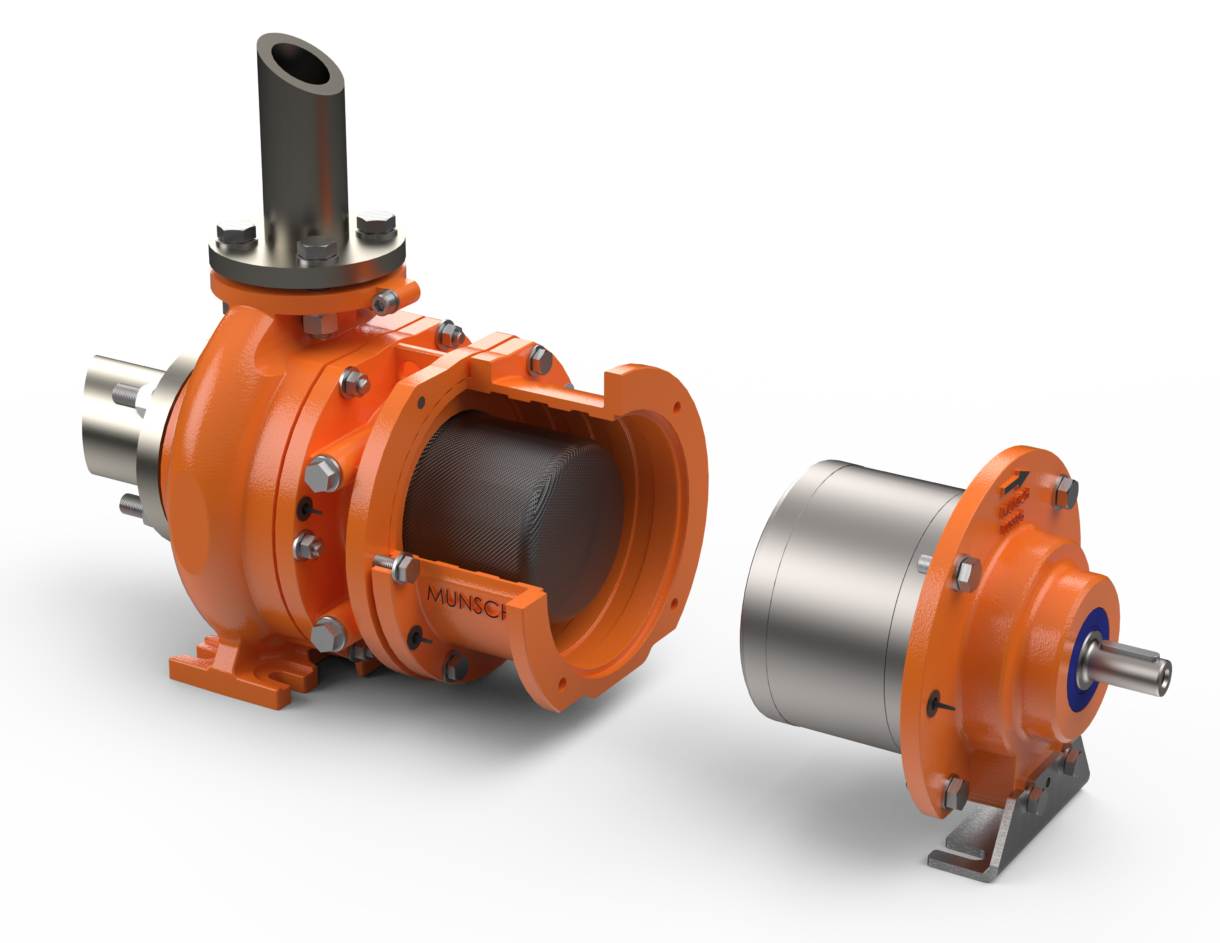

MagPull
Maintenance within the plant? No problem with our MagPull system! The bearing bracket can be removed from the remaining pump unit with the piping connections remaining connected.
The pump will continue to be hermetically sealed while the bearing bracket and outer magnet assembly are being serviced.
